AUSA D601AHG
Cost-effective, safe, and equipped with advanced technology, this model features a 180-degree swing skip and a 6-ton (13,200 lb) payload, making it a formidable tool for efficient material handling in various settings, including golf course construction and renovation. The hydrostatic transmission ensures maximum comfort and safety, allowing for smooth, precise control under various operational conditions. Designed for high productivity and ease of use, its substantial payload capacity is perfect for moving large volumes of materials such as dirt, sand, and gravel, essential for shaping and maintaining golf courses. Its swing skip offers the flexibility to deposit materials to either side, enhancing efficiency in tight spaces and minimizing disruption to the existing landscape. This combination of features makes it an ideal choice for projects requiring robust and reliable material handling solutions in construction and landscaping, especially in the precise work of golf course development.
Description
Cost-effective, safe, and high-tech, the D601AHG dumper is designed to efficiently move earth, land, and pavement, with a robust 6-ton (13,200 lb) payload capacity and a versatile 180-degree swing skip. Its hydrostatic transmission ensures maximum comfort and safety, facilitating precise control and smooth operation across various terrains. This dumper is engineered to move fast and move forward, making it an essential asset for demanding construction and landscaping projects, including golf course building and renovation.
Equipped with the ECO Mode system as standard, the D601AHG automatically regulates the machine’s RPM at low speeds to enhance fuel efficiency. The optional Smart Stop feature further boosts its environmental credentials by shutting off the engine when not in use, significantly reducing fuel consumption and maintaining low CO2 emissions. This makes the D601AHG not only powerful but also an environmentally-friendly choice.

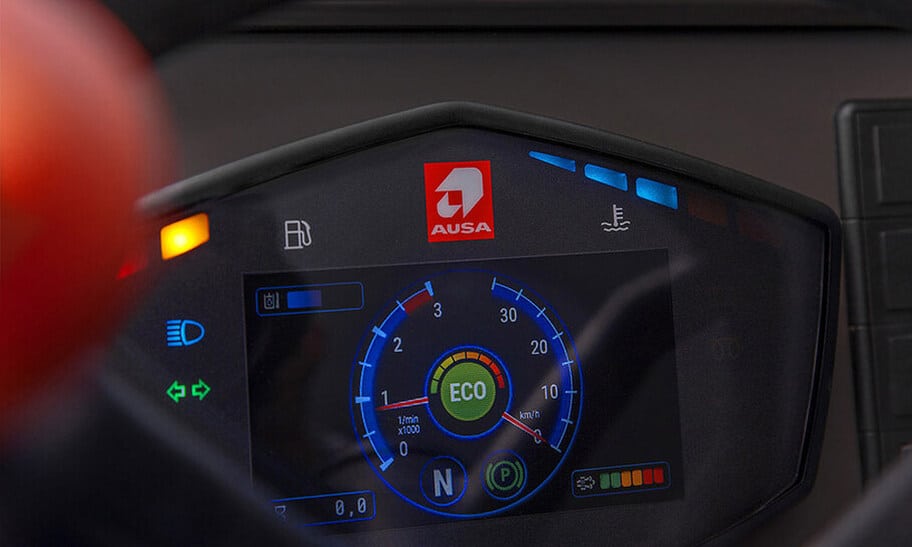

Safety is paramount with the D601AHG. It features the innovative Hill Holder system, which automatically engages the brake when the accelerator is released at speeds close to zero, simplifying maneuvers on slopes and enhancing operator confidence. A state-of-the-art digital display is integrated into the driver’s console, providing all necessary real-time information about the machine, such as speed, RPM, fluid levels, and alarms, ensuring operators are fully informed and can react swiftly to any changes.
With its combination of power, precision, and advanced safety features, the D601AHG dumper is perfectly suited for efficiently handling large volumes of material while ensuring operational safety and environmental responsibility.
| General | Unloading system: | Rotating |
|---|---|
| General | Load capacity: | 13200 lb |
| General | Chassis: | Articulated |
| General | Water skip capacity: | 2.17 cu yd |
| General | Level skip capacity: | 3.21 cu yd |
| General | Heaped skip capacity: | 2.12 cu yd |
| General | Empty weight: | 9843 lb |
| General | Transmission: | Hydrostatic |
| General | Reversibility: | Non-reversible |
| Engine | Brand: | DEUTZ |
| Engine | Model: | TD3.6 L4 |
| Engine | Power: | 74 hp |
| Engine | Torque: | 300@1600 |
| Engine | No. of cylinders: | 4 |
| Engine | Emissions: | Stage IIIB – EPA Tier 4F |
| Engine | Noise level: | 101 dB(A) |
| Driving | Max. speed: | 15.5 mph |
| Driving | Maximum gradient: | 45% |
| Driving | External turning radius: | 232 in |
| Driving | Traction: | 4x4 |
| Driving | Tyres: | 405/70-20 |
| Hydraulic system | Flow rate: | 13.2 gal/min |
| Hydraulic system | Working pressure: | 2610 psi |
| Deposit capacity | Fuel: | 18.2 gal |
| Deposit capacity | Hydraulic system: | 15.8 gal |
| Brakes | Service: | Hydraulic, sealed, multi-disc |
| Brakes | Parking: | Negative |
Features
- Driving Position | Front folding ROPS protective structure
- Driving Position | Rear folding ROPS protective structure
- Driving Position | FOPS protective roof on ROPS protective structure
- Driving Position | Closed ROPS/FOPS cab with heating (Optional)
- Driving Position | Closed ROPS/FOPS cab with heating and air conditioning (Optional)
- Safety | Rotating beacon
- Safety | Acoustic warning for reverse gear
- Safety | Emergency stop
- Safety | Anti-vandal security system
- Safety | Seat belt with fasten sensor
- Safety | Seat with operator's presence sensor
- Safety | LED rotating beacon (Optional)
- Safety | Green rotating beacon (Optional)
- Safety | Hill Holder - hill-start assist
- Safety | Negative brake
- Safety | Full visibility camera on the skip side
- Safety | Full visibility cameras on the skip and counterweight sides and proximity sensors
- Safety | Protective grille on the skip (Optional)
- Lighting and driving | Approved lighting system (Optional)
- Lighting and driving | Rear-view mirror
- Lighting and driving | Second rear-view mirror
- Lighting and driving | Third rear-view mirror
- Comfort | Adjustable ergonomic seat
- Comfort | Highly comfortable seat, full adjustable
- Comfort | All-in-one joystick
- Advanced equipment | Hydrostatic transmission
- Advanced equipment | Hydrostatic transmission with electronic control
- Advanced equipment | Limited-slip differential on both axles
- Advanced equipment | ECO Mode system
- Advanced equipment | Smart Stop system (Optional)
- Advanced equipment | Digital display
- Accessories | Metal engine cover
- Accessories | Reverse gear acoustic warning disable switch (Optional)
- Accessories | Waterproof document holder (Optional)
- Accessories | Biodegradable hydraulic oil
- Accessories | Ball and towing hitch with power socket
- Accessories | Front mudguards
- Accessories | Car radio (Optional)
- Accessories | Water separator diesel filter
- Accessories | Air filter with cyclone pre-filter
- Accessories | Ball and towing hitch
- Accessories | Power socket for the trailer
- Accessories | Rockinger hitch with power socket
- Tyres | Turf tyres 400/60 -155″ TL 14PR (Optional)
- Tyres | Pack of 4 turf wheels 560/45-22.5″ TL
- Parts | 1,000 h maintenance kit (Optional)
- Parts | Standard spare wheel (Optional)
- Parts | Turf wheel 400/60-155″ TL 14PR (Optional)
- Parts | Pack of 4 turf wheels 400/60 -155″ TL 14PR (Optional)
